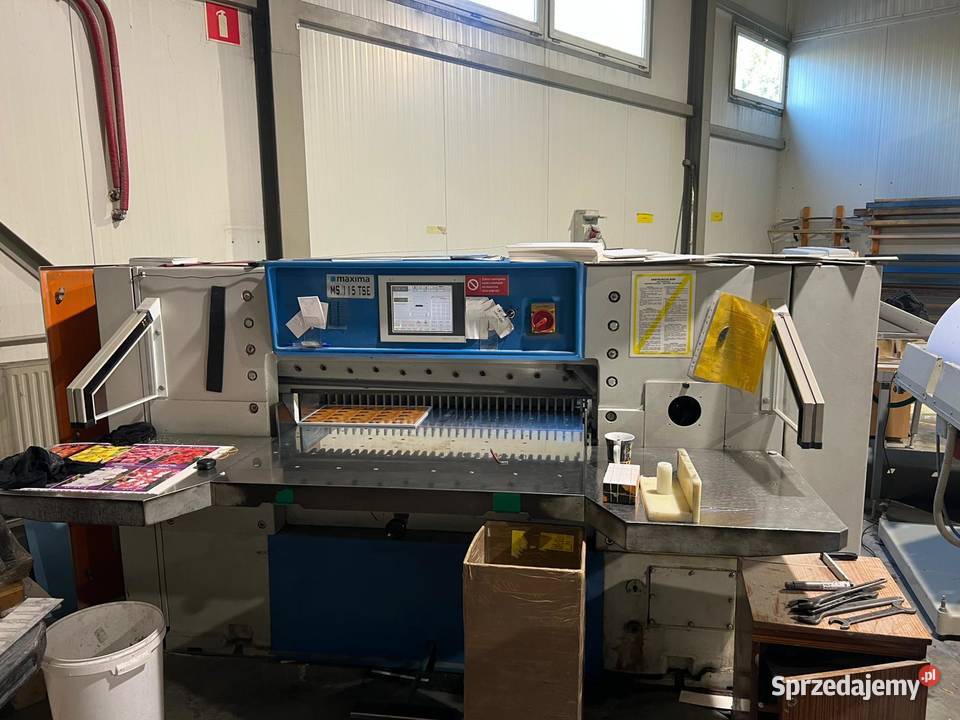

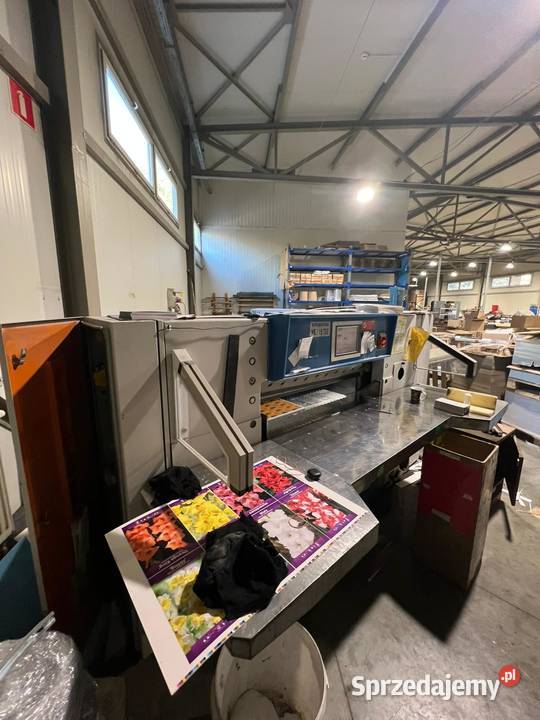

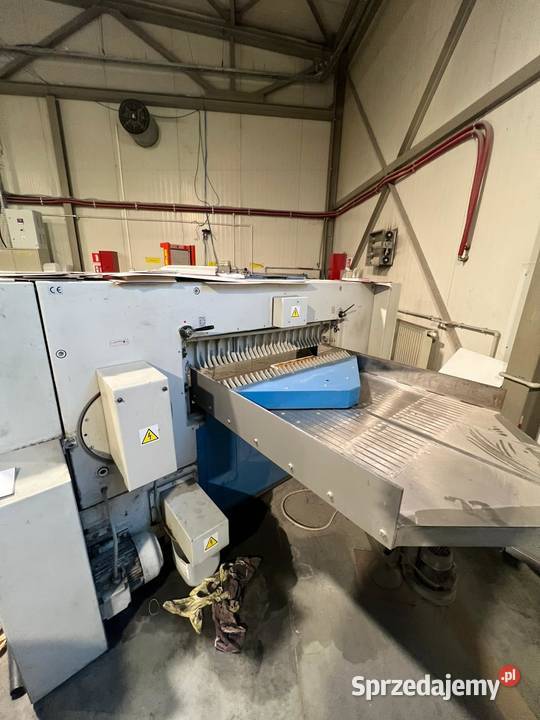

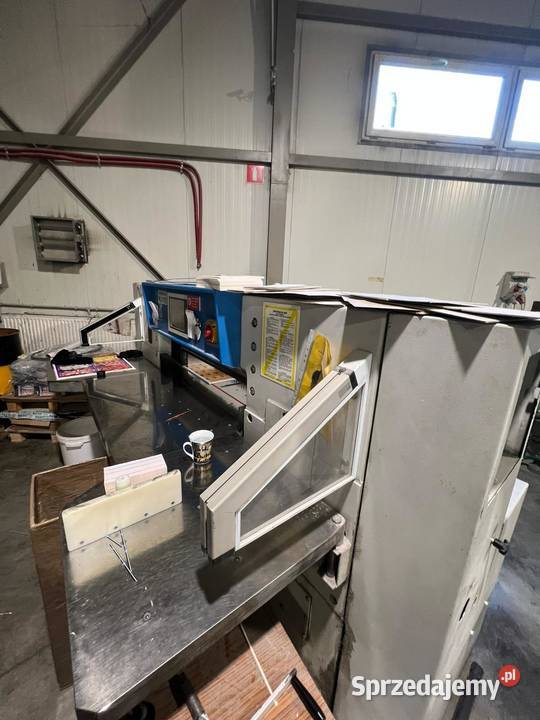

Krajarka MAXIMA MS 115 TSE
Dane techniczne:
MAXIMA MS 115 TSE PAPER GUILLOTINE
YEAR OF MANUFACTURE 2006
Technical specifications
Table/cutting width [mm] 1150
Knife travel time in 1 cycle [s] 1.5
Table length [mm] 710
Max. Table distance from the knife plane [mm] 1190
Table height from the base [mm] 900
Beam stroke with knife / cutting stack height [mm] 125
Beam stroke without knife [mm] 130
Min. waste when manual / mechanical cutting [mm] 25/35
Max. beam pressure force [N] 300
Cutting force [N] 2000-37000
Saddle/comb feed speed [mm.s”] 130
Program storage time 1 year
Table position tolerance [mm] 0.01
Power supply 3x400V/5.5kW
L/W/H [mm] 2663x2820x1565
Net weight [kg] 3250
Gross weight [kg] 3850
Machine box dimensions [mm] 3160x1720x1900
Equipment:
Power supply 400 V, 3-phase, 50 Hz
Programmable cutting system (4 x 200 programs, each with 250 cutting steps)
9 language versions of the system
Digital size setting and readout
Optical and mechanical cutting line marking
Striping with or without cuts
Semi-automatic cutting
Cut programming
Manual cutting data setting
Striping without cutting
Data programming without cutting
Metric/inch measuring system
Graphical cutting simulation
Password-protected program
Adjustable piston pressure for cutting various types of materials
Automatic program creation
Electronic and technical system assistance with program setup

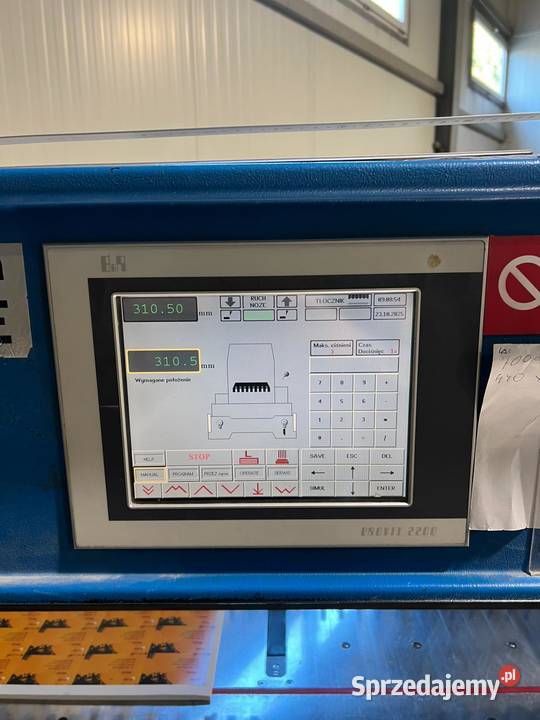

TFT display
Color touchscreen monitor
Two-hand cutting start with time synchronization
Mechanical knife safety lock in the upper position, constant knife position control
Automatic knife cover in each position position
Air cushion table
Stainless steel coated table
Reinforced hydraulic system
Electronic pressure adjustment for cutting various types of material
Manual comb feed using an electronic button
Knife replacement from the front of the machine
Cut counter
HSS (High Speed Steel) stainless steel knife
Spare parts catalog
European CE Safety Certificate
Machine manual
Photocell safety system
Rok produkcji: 2006
Cena: na zapytanie
Możliwość zobaczenia maszyny: tak
