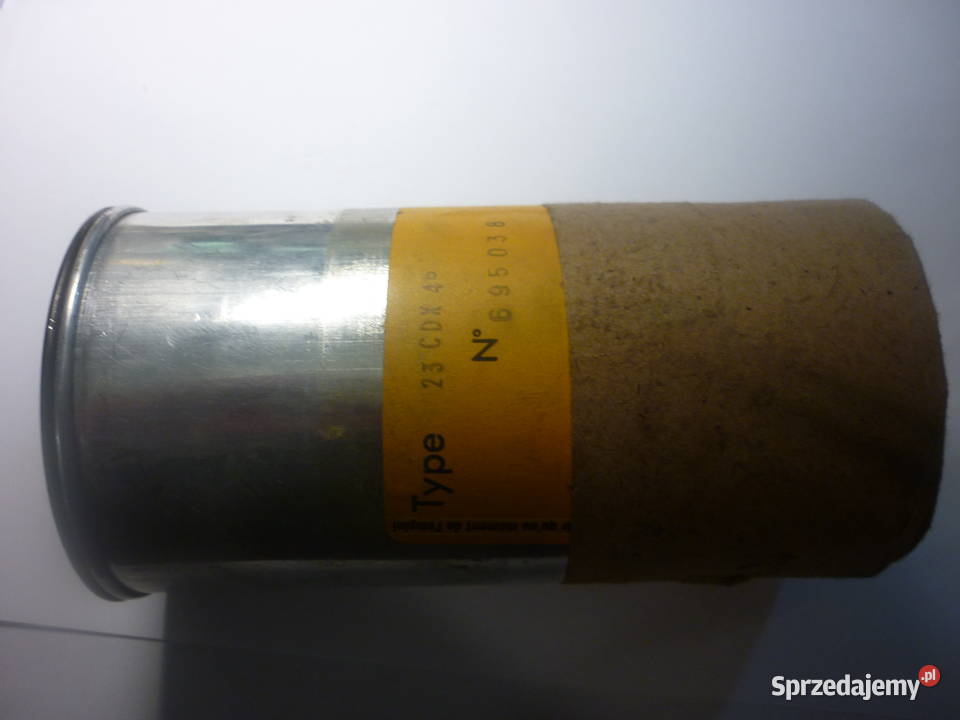

Selsyn 23CDX4b 90V 400Hz
- Dębica, podkarpackie
- 28 Cze 08:30
- Nr ogłoszenia: 70216859
- Dostępność: dostępne
1 / 1
Obserwuj
- Oferta od osoby prywatnej
- Stan nowe
5990-00-845-1227
MRC Criteria Characteristic
AJSL BODY SIZE 23
AJSN STATOR INPUT VOLTAGE RATING IN VOLTS 90.0 NOMINAL
AJSP STATOR INPUT CURRENT RATING 270.0 MILLIAMPERES NOMINAL
AJSQ STATOR INPUT ELECTRICAL POWER RATING 2.0 WATTS NOMINAL
AJSS FREQUENCY IN HERTZ 400.0 NOMINAL
CSJY TRANSFORMATION RATIO 1.154 ROTOR TO STATOR NOMINAL
AJVV TORQUE GRADIENT PER ANGULAR DEG ANY ACCEPTABLE
ABHP OVERALL LENGTH 3.8300 INCHES NOMINAL
CRSJ SHAFT TYPE SPLINE SINGLE SHAFT
ABWV SHAFT DIAMETER 0.2405 INCHES NOMINAL SINGLE SHAFT
ABXF SHAFT LENGTH 0.6760 INCHES NOMINAL SINGLE SHAFT
AJVM SPLINE TOOTH QUANTITY 22 SINGLE SHAFT
AJXA SPLINE TOOTH DIAMETRAL PITCH 96 SINGLE SHAFT
TTQY TERMINAL TYPE AND QUANTITY 6 SCREW
SR-1 MANUFACTURERS CODE 81349
SR-1 NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MILS20708-4
SR-1 MANUFACTURERS CODE 81349
SR-1 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE 23CDX4B 90V 400Hz
Nr katalogowy
- 5990-00-845-1227
