Płyta głowna Msi Z170A GAMING M5 LGA1151 uszkodzona do naprawy
- Toruń, kujawsko-pomorskie
- 04 Lis 10:50
- Nr ogłoszenia: 72506212
- Dostępność: dostępne
1 / 4
Obserwuj
- Oferta od osoby prywatnej
- Stan używane
- Producent MSI
- Standard ATX
- Typ pamięci Inny

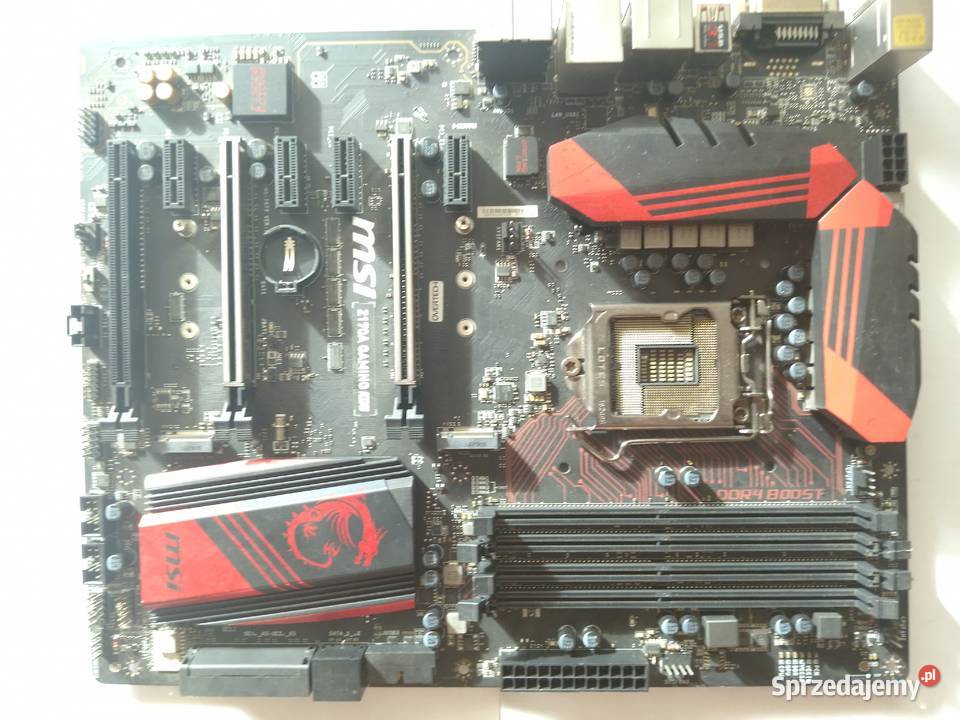

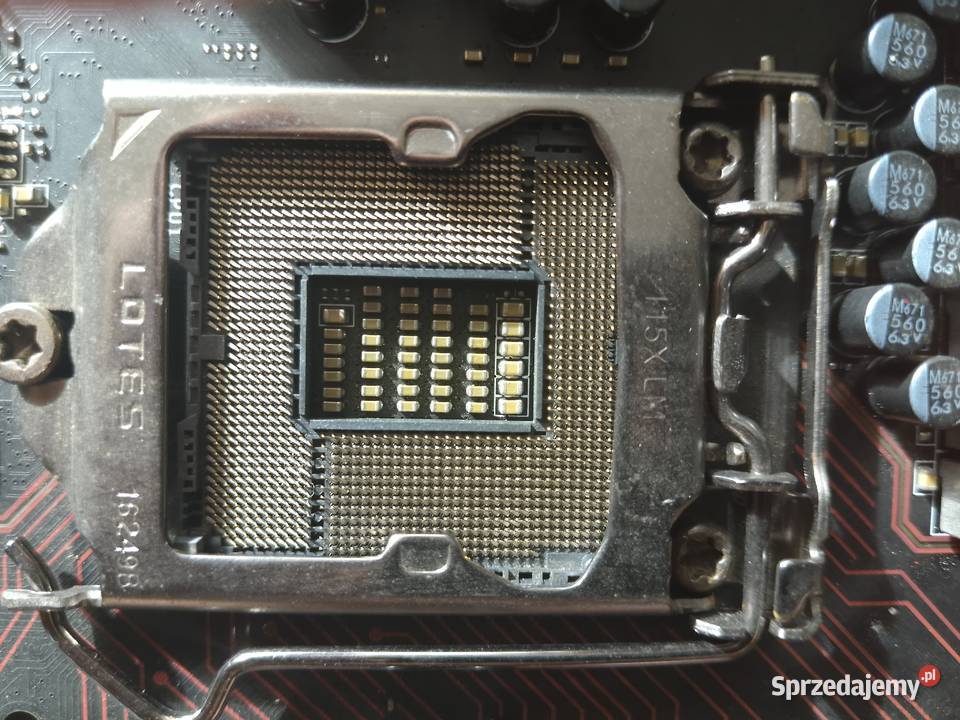

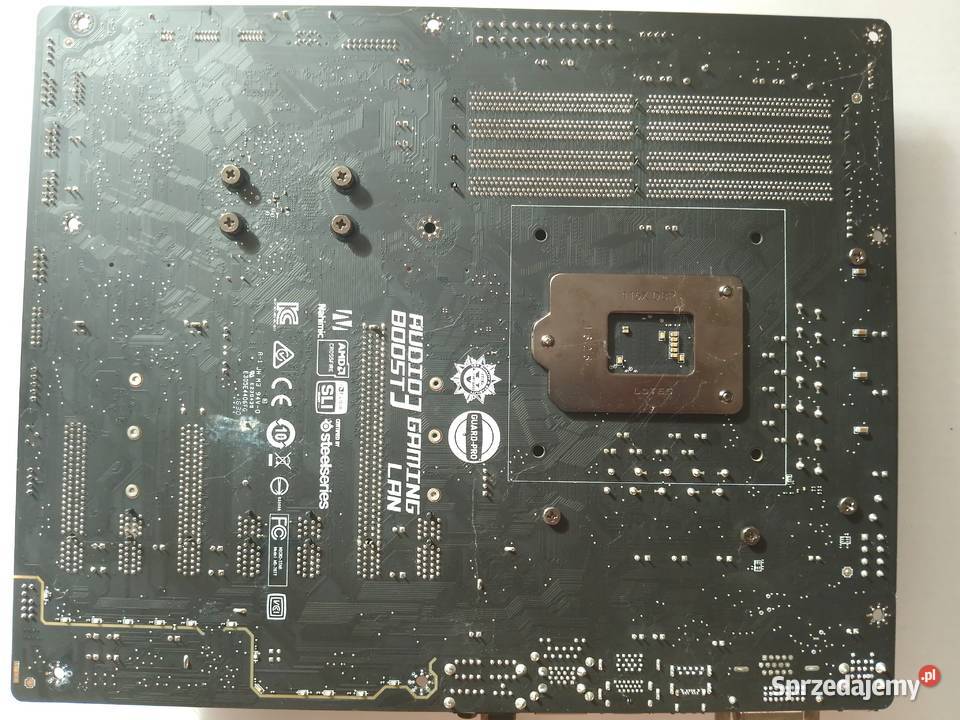

Płyta głowna Msi Z170A GAMING M5 uszkodzona do naprawy nie nosi śladów przypalenia uszkodzen mechanicznych nie widac brakujących elementów piny nie wygięte nie widac podejmowanych prób naprawy nie widac śladów zalan ogólnie płyty nie grzebane brak maskownicy posiadam dwie sztuki jezeli ktos bedzie zainteresowany moge wysłać wiecej zdjęc zblizeń płyty
Możliwa wysyłka za pobraniem lub odbiór osobisty
Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
Chipset
Intel® Z170 Express Chipset
• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
- Dual channel memory architecture
- Supports ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
Slots
• 3 x PCIe 3.0 x16 slots (support x16, x8/x8, x8/x8/x4 or x8/ x8/x1 modes)
• 4 x PCIe 3.0 x1 slots
Onboard Graphics
• 1 x HDMI™ port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz
Multi-GPU Support
• Supports 3-Way AMD® CrossFire™ Technology
• Supports 2-Way NVIDIA® SLI™ Technology
Storage
• Intel® Z170 Express Chipset
• 6 x SATA 6Gb/s ports* (4 ports reserved for SATA Express port)
• 2 x M.2 slots
- Supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards
- Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card**
• 2 x SATAe ports (PCIe 3.0 x2)***
• Supports Intel® Smart Response Technology for Intel Core™ processors
* M.2, SATA and SATAe ports maximum support 1x M.2_PCIe + 6x SATAs or 1x M.2_SATA + 1x M.2_PCIe + 4x SATAs. Please refer to page 34 for M.2 slots with examples of various combination possibilities.
** The Turbo U.2 Host Card is not included, please purchase separately.
*** SATAe port is backward compatible with SATA.
RAID
• Intel® Z170 Express Chipset
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID1 for M.2 PCIe storage devices*
* M.2 PCIe RAID volume can be created with UEFI BIOS
USB
• ASMedia® ASM1142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port on the back panel
- 1 x USB 3.1 Gen2 Type-C port on the back panel
• Intel® Z170 Express Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
Audio
• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN
• 1 x Killer™ E2400 Gigabit LAN controller
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x SATAe connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Chassis Intrusion connector
- 1 x Slow mode switch
- 1 x Clear CMOS jumper
- 1 x 2-Digit Debug Code LED

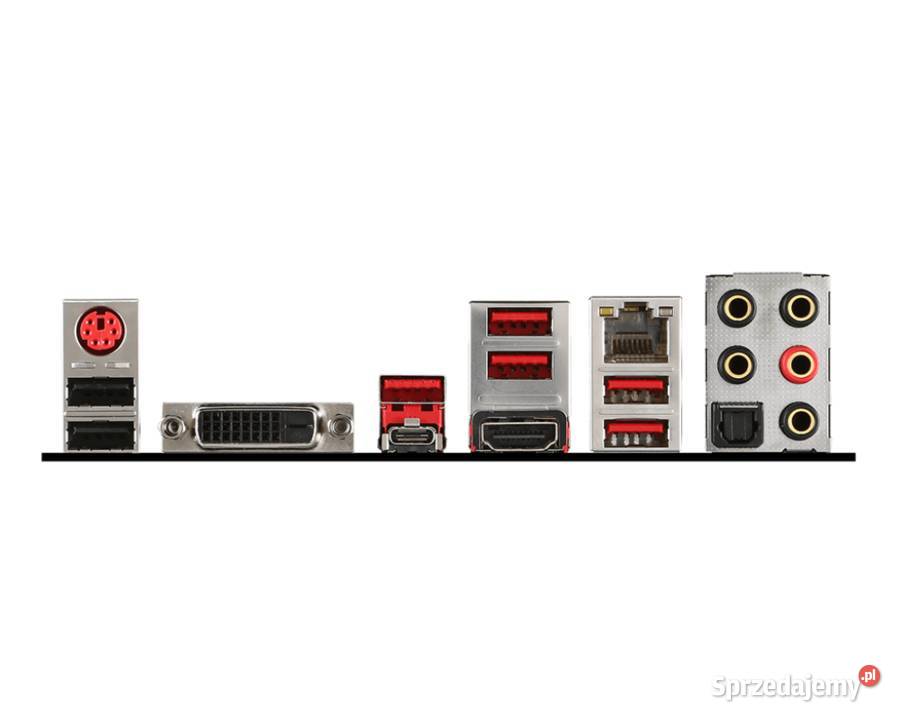

Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse port
- 2 x USB 2.0 ports
- 1 x DVI-D port
- 1 x USB 3.1 Gen2 port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 ports
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor
Skontaktuj się
mwz862r
Liczba odsłon: 29
Zgłoś nadużycie
250 zł
