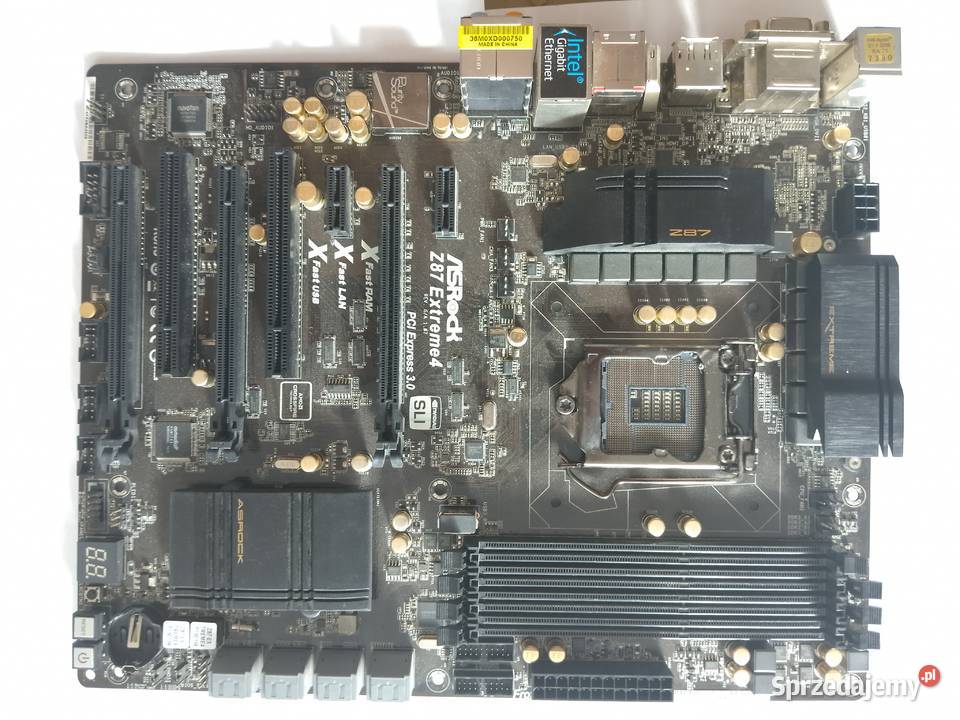

Płyta główna Asrock z87 extreme 4 Lga 1150 płyta 100 % sprawna
- Toruń, kujawsko-pomorskie
- 04 Lis 11:47
- Nr ogłoszenia: 72506517
- Dostępność: dostępne
1 / 6
Obserwuj
- Oferta od osoby prywatnej
- Stan używane
- Producent ASRock
- Standard ATX
- Typ pamięci DDR3 2600+
- Maks. Ilość pamięci 32

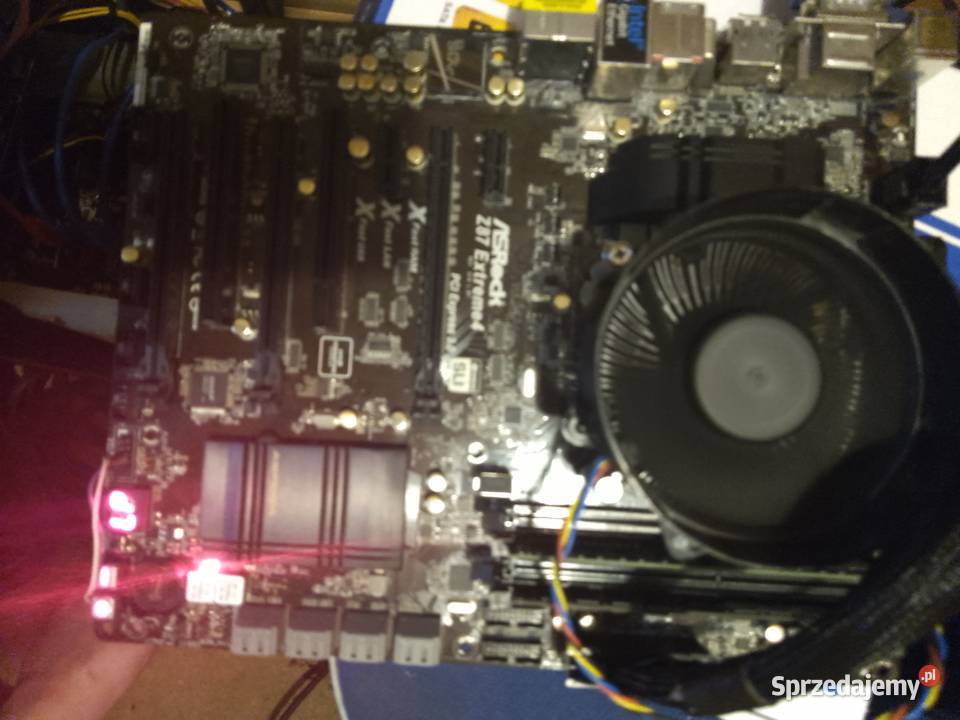

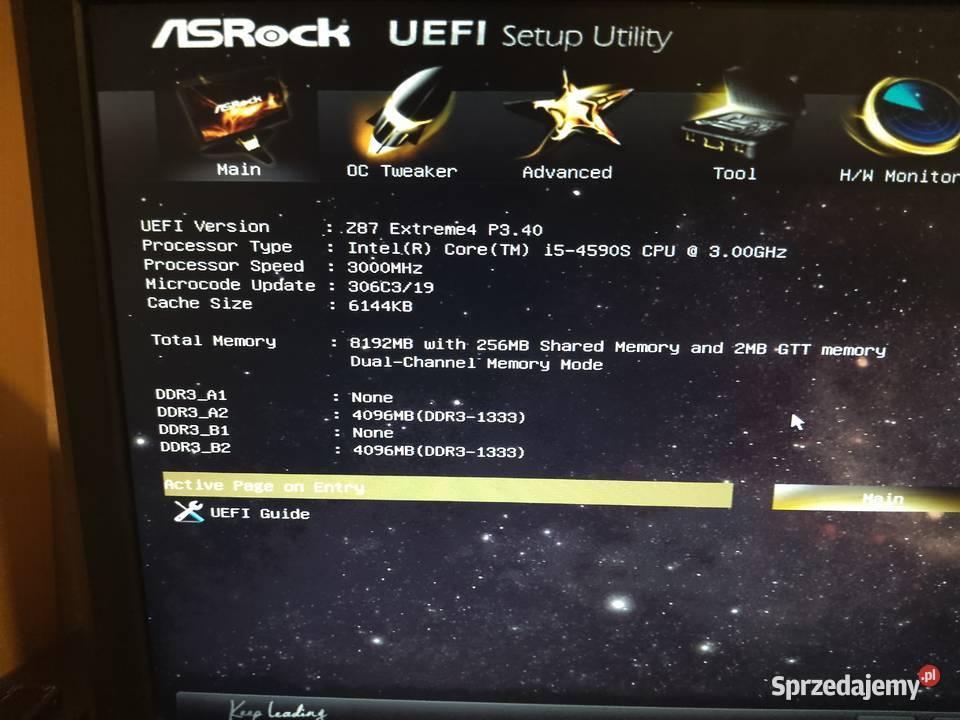

Płyta główna Asrock z87 extreme 4 Płyta 100% sprawna przetestowana brak naskownicy w komplecie przewód sata jezeli ktos bedzie zainteresowany moge wysłać wiecej zdjęc zblizeń płyty.Przetestowana na procesorze i5-4590s .Na zdjeciu widoczne działa nie płyty i bios
CPU
- Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
- Digi Power Design
- 12 Power Phase Design
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® K-Series unlocked CPU
- Supports ASRock BCLK Full-range Overclocking
Chipset
- Intel® Z87
Pamięć
- Dual Channel DDR3/DDR3L memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2933+(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel® Ekstremalny Profil Pamięci (XMP) 1.3 / 1.2
- Distortion-Free Slot
*Z powodu ograniczeń system operacyjnego, rzeczywisty rozmiar pamięci może być mniejszy niż 4GB dla rezerwacji przez system Windows® 32-bit. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 2 x 64Mb AMI UEFI Legal BIOS with Multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment
Karta graficzna
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 512MB*
- Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort
- Supports Triple Monitor
- Supports HDMI Technology with max. Rozdzielczośćup to 4K x 2K (4096x2304) @ 24Hz
- Supports DVI-D with max. Rozdzielczośćup to 1920x1200 @ 60Hz
- Supports D-Sub with max. Rozdzielczośćup to 1920x1200 @ 60Hz
- Supports DisplayPort with max. Rozdzielczośćup to 4K x 2K (4096x2304) @ 24Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports HDCP function with DVI-D, HDMI and DisplayPort ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort ports
*The size of maximum shared memory may vary from different operating systems.
**Technologie Intel® HD Graphics Built-in Visual oraz wyjścia obrazu mogą być obsługiwane tylko przez procesory wyposażone w zintegrowane GPU.
***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.
****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Audio
- 7.1 CH HD Audio with Ochrona Treści (Realtek ALC1150 Audio Codec)
- Premium Blu-ray audio support
- Supports Purity Sound™
- 115dB SNR DAC with differential amplifier
- TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
- Direct Drive Technology
- EMI shielding cover
- PCB isolate shielding
- Supports DTS Connect
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I217V
- Supports Intel® Remote Wake Technology
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Sloty
- 3 x PCI Express 3.0 x16 slots (PCIE2/PCIE4/PCIE5: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 ) (PCIE4) / x4 (PCIE5)
- 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots
- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
- Supports NVIDIA® Quad SLI™ and SLI™
Magazynowanie
- 6 x SATA3 6.0 Gb/s connectors by Intel® Z87, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug
- 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug (SATA3_A0 connector is shared with eSATA port)
- 1 x eSATA connector by ASMedia ASM1061, supports NCQ, AHCI, Hot Plug and Port Multiplier
Złącza
- 1 x IR header
- 1 x COM Port header
- 1 x Power LED header
- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
- 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
- 1 x Power Fan connector (3-pin)
- 1 x 24 pin ATX power connector
- 1 x 8 pin 12V power connector
- 1 x Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x Vertical Type A USB 3.1 Gen1
- 2 x USB 3.1 Gen1 headers (support 4 USB 3.1 Gen1 ports) (ASMedia Hub)
- 1 x Dr. Debug with LED
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch

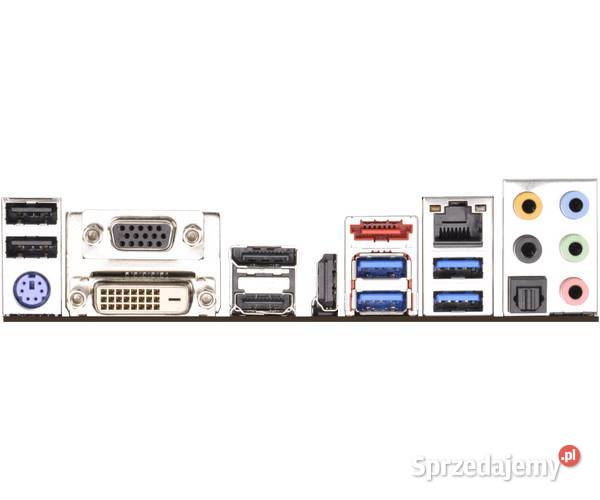

Tylny panel
I/O Panel
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI-Out Port
- 1 x HDMI-In Port
- 1 x DisplayPort
- 1 x Optical SPDIF Out Port
- 1 x eSATA Connector
- 2 x USB 2.0 Ports
- 4 x USB 3.1 Gen1 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Cechy szczególne
- ASRock APP Shop
- ASRock A-Tuning
- ASRock Funkcja Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
- ASRock Interactive UEFI
- ASRock Fast Boot
- ASRock Restart to UEFI
- ASRock USB Key
- ASRock FAN-Tastic Tuning
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Good Night LED
Akcesoria
- 1 x ASRock SLI_Bridge_2S Card
- I/O Shield
- 4 x SATA Data Cables
Hardware Monitor
- CPU, Chassis temperature sensing
- CPU, Chassis, Power Fan Tachometer
- CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU, Chassis Fan multi-speed control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Wymiary
- ATX Form Factor
- Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)
System operacyjny
- Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certyfikaty
- FCC, CE
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Skontaktuj się
mwz862r
Liczba odsłon: 32
Zgłoś nadużycie
300 zł
