Płyta główna Asrock Z77 EXTREME 4 - LGA 1155.
- 24 Lip 15:31
- Nr ogłoszenia: 69595846
- Dostępność: niedostępne
1 / 7
- Oferta od osoby prywatnej
- Stan używane
- Producent ASRock
- Standard ATX
- Typ pamięci DDR3 2600+
- Maks. Ilość pamięci 31
Przedmiotem oferty jest w 100% sprawna, wydajna płyta główna Asrock Z77 PRO 4.
Płyta została przetestowana.

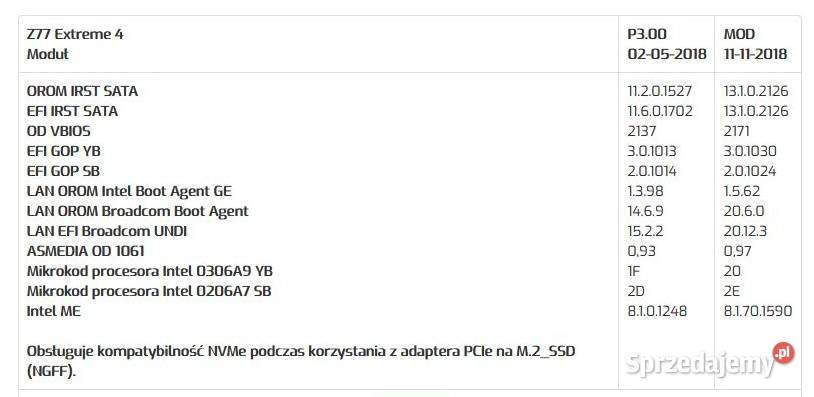

W pamięć płyty wgrany został najnowszy dostępny bios w wersji V3.00 MOD.
Płyta ma wymienione termopady pod radiatorami sekcji zasilania i pastę termoprzewodzącą
radiatora mostka południowego.
Podstawowe parametry płyty głównej.

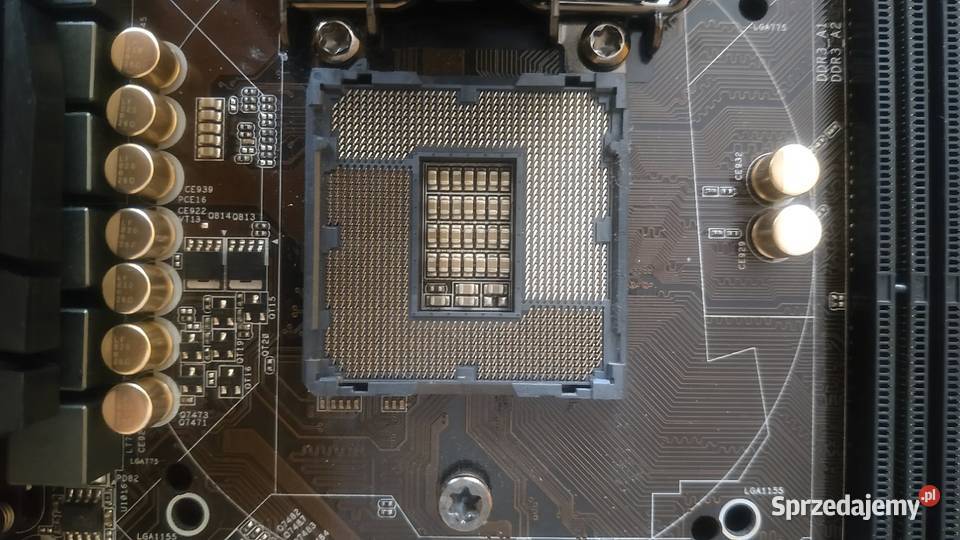

- Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
- Digi Power Design
- 8 + 4 Power Phase Design
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® K-Series unlocked CPU
- Supports Hyper-Threading Technology
Chipset
- Intel® Z77
- Supports Intel® Rapid Start Technology and Smart Connect Technology
*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.
Memory
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**In order to maximize the system memory, please install 8GB memory module with 16 cells
BIOS
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
Graphics
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
- Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU
- Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200 60Hz
- Supports DVI with max. resolution up to 1920x1200 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.
***Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec)
- Premium Blu-ray audio support
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Broadcom BCM57781
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 2 x PCI Express 3.0 x16 slots (PCIE2/PCIE3: single at x16 (PCIE2) / x8 (PCIE3) or dual at x8/x8 mode)
- 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- Supports NVIDIA® Quad SLI™ and SLI™
*PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.
SATA3
- 2 x SATA3 6.0 Gb/s connectors by Intel® Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions
- 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug functions (SATA3_A1 connector is shared with eSATA3 port)
USB 3.0
- 2 x Rear USB 3.1 Gen1 ports by Intel® Z77, support USB 1.0/2.0/3.0 up to 5Gb/s
- 2 x Rear USB 3.1 Gen1 ports by ASMedia ASM1042, support USB 1.0/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.1 Gen1 header by Intel® Z77 (supports 2 USB 3.1 Gen1 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s
Connector
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions
- 4 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
- 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
- 1 x Power Fan connector (3-pin)
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)
- 1 x Dr. Debug with LED*
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
*Check the Dr. Debug code list here.
Rear Panel I/O
I/O Panel
- 1 x PS/2 Keyboard/Mouse Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA3 Connector
- 4 x Ready-to-Use USB 3.1 Gen1 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Unique Feature
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock Dehumidifier Function
- ASRock No-K OC Technology
- Lucid Virtu Universal MVP
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU, Chassis, Power Fan Tachometer
- CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU, Chassis Fan multi-speed control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
- Premium Gold Capacitor design (100% Japan made high quality conductive polymer capacitors)

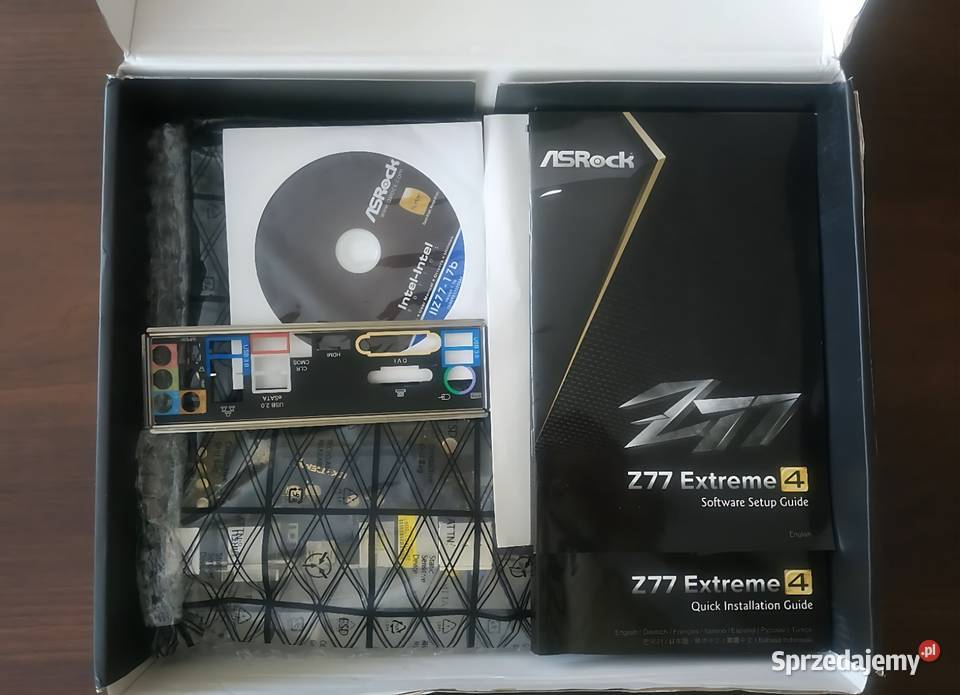

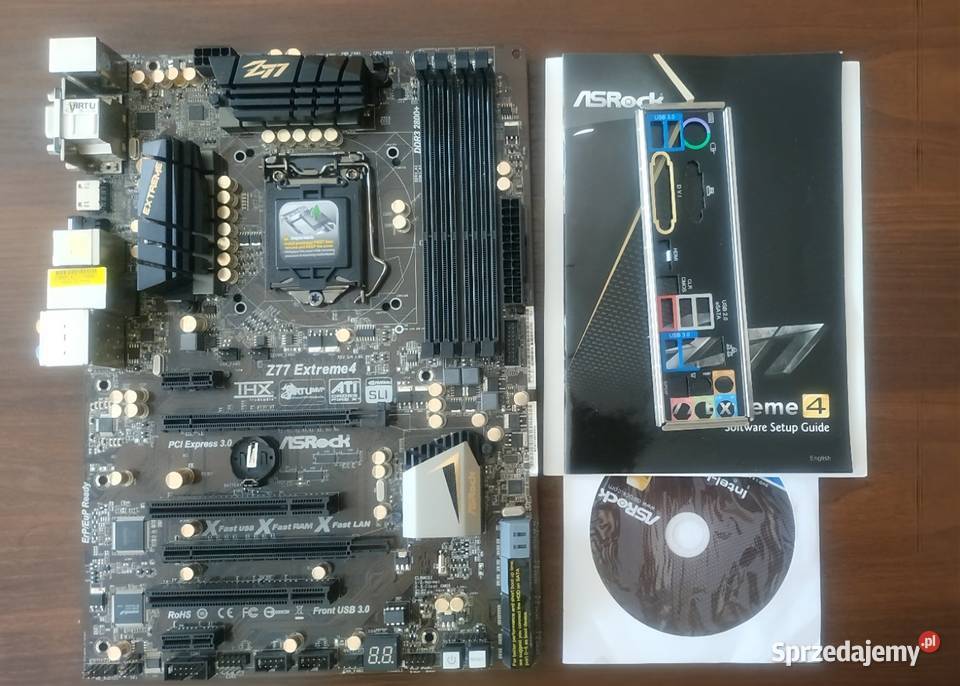

W skład zestawu wchodzą:
- Pudełko z płytą główną.
- Przewód SATA,
- Instrukcja konfiguracji biosu,
- Płyta CD ze sterownikami.
- Maskownica portów.
- Pełna instrukcja płyty dostępna jes na stronie producenta w formacie *.pdf.
Uwaga: przed zakupem należy się zastanowić, gdyż nie bedę uwzględniał
reklamacji.
Przed wysyłką płyta zostanie jeszcze raz przetestowana.
