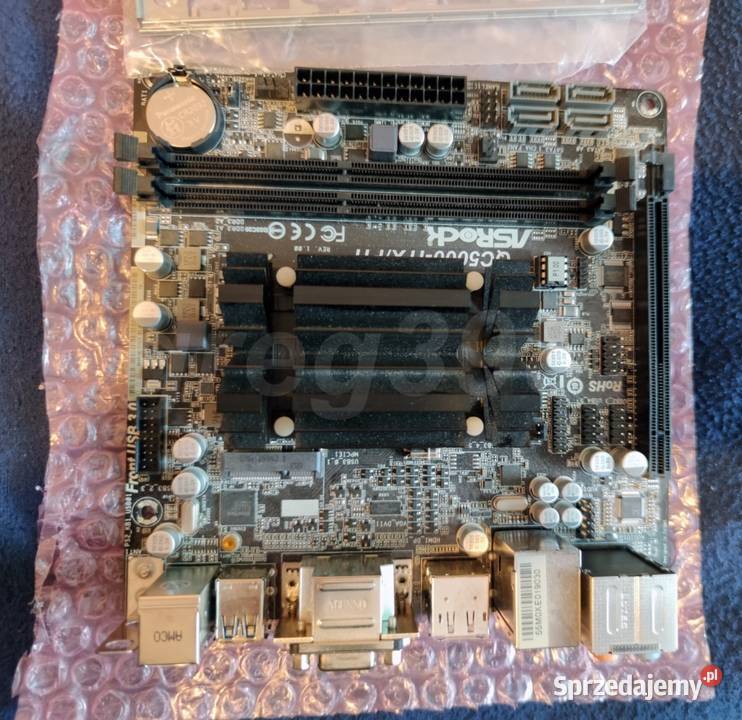

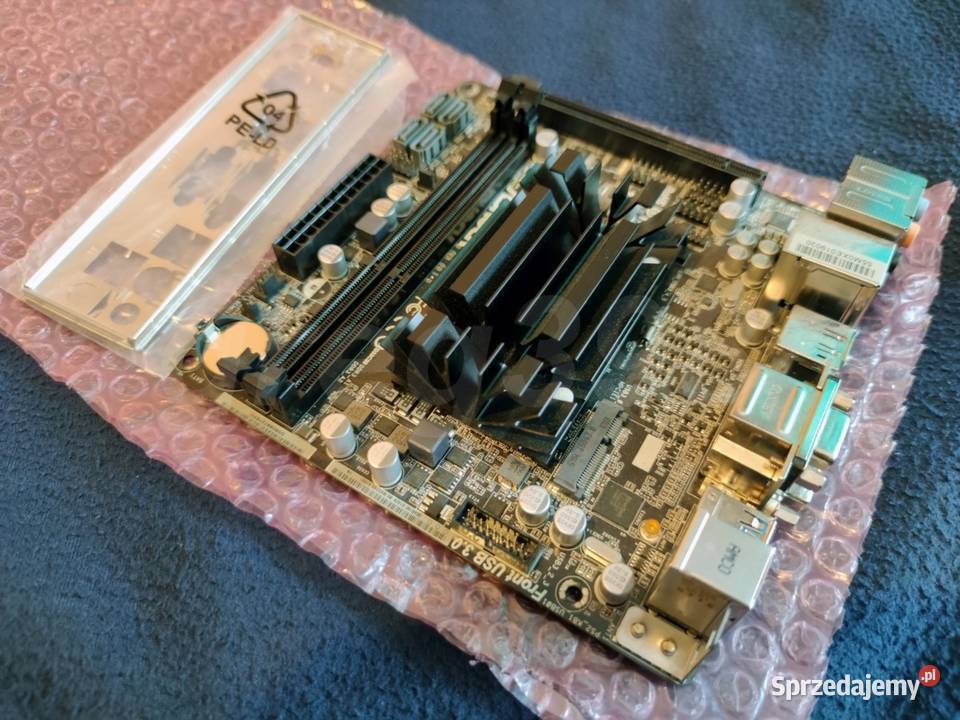

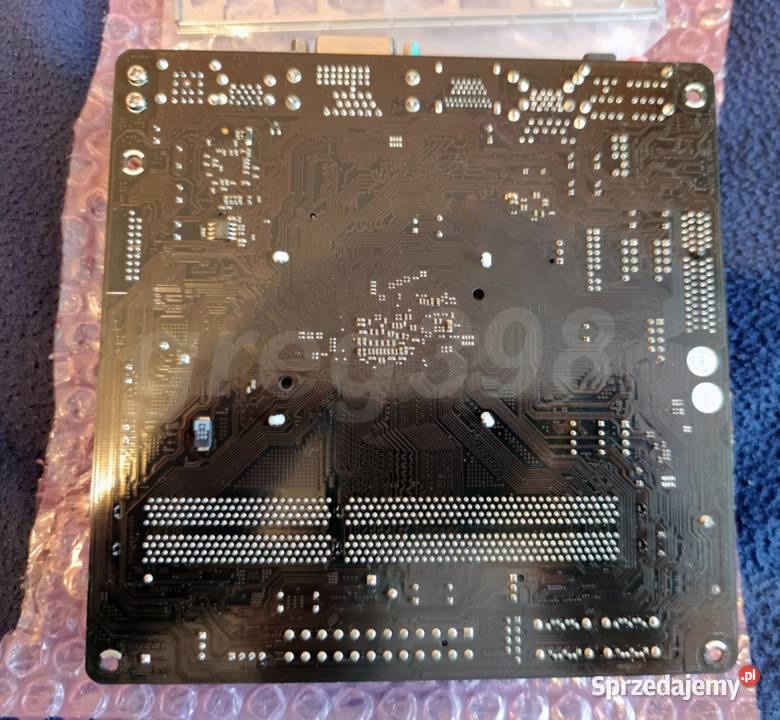

Płyta główna ASROCK QC5000-ITX/PH, procesor AMD A4-5000 4R/4W mITX HTPC
- Białystok, podlaskie
- 28 Lip 12:32
- Nr ogłoszenia: 70462007
- Dostępność: dostępne
1 / 4
Obserwuj
- Oferta od osoby prywatnej
- Stan używane
- Producent ASRock
- Standard Mini ITX
- Typ pamięci DDR3 1600
- Maks. Ilość pamięci 16
- Socket Pozostałe
Bardzo fajna płyta mITX z procesorem czterordzeniowym, HDMI, DisplayPort, SATA 3 i USB 3. Całkowicie sprawna, sprawdzona, z blaszką do obudowy, służyła jako domowe centrum rozrywki.
Video do 4K i audio ALC 892-7.1, PCI-E 2.0x16, slot miniPCIe na kartę Wi-Fi.
Specyfikacja Asrock:
Unique Feature
ASRock Full Spike Protection
CPU
- AMD FT3 Kabini A4-5000 Quad-Core APU
Chipset
- SOC
Memory
- 2 x DDR3 DIMM Slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Please refer to Memory Support List on ASRock's website for more information.
BIOS
- 32Mb AMI UEFI Legal BIOS with multilingual GUI support
- Supports "Plug and Play"
- ACPI 1.1 compliance wake up events
- SMBIOS 2.3.1 support
- DRAM Voltage multi-adjustment
Graphics
- Integrated AMD Radeon™ HD 8330 Graphics
- DirectX 11.1, Pixel Shader 5.0
- Max. shared memory 2GB
- Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort 1.2
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz or 4K x 2K (3840x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode)
- 1 x Mini-PCI Express Slot
Storage
- 2 x SATA3 6.0 Gb/s Connectors by AMD FT3 Kabini A4-5000 Quad-Core APU, support NCQ, AHCI and Hot Plug
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
Connector
- 1 x COM Port Header
- 1 x TPM Header
- 1 x CPU Fan Connector (3-pin)
- 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.1 Gen1 Header by Etron EJ188H (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))

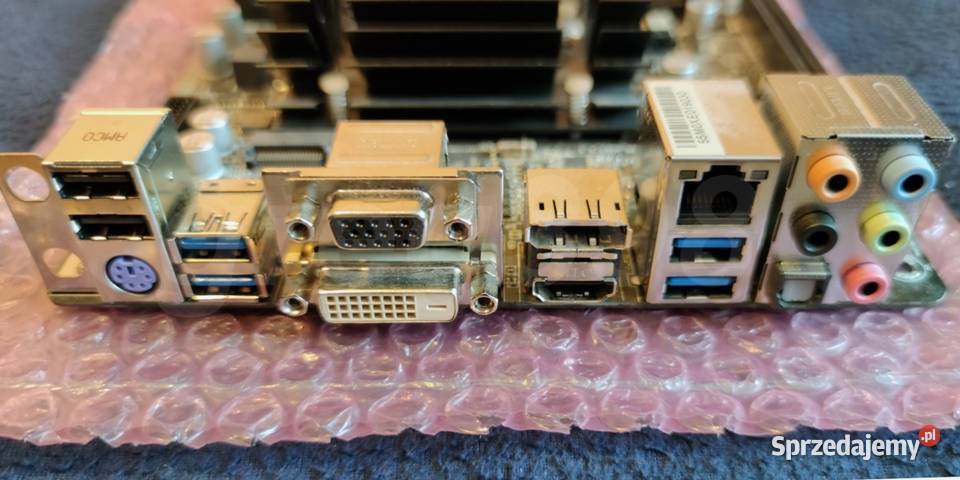

Rear Panel I/O
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.1 Gen1 Ports (AMD FT3 Kabini A4-5000 Quad-Core APU) (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.1 Gen1 Ports (Etron EJ188H) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Cena ostateczna.
Odbiór osobisty - Białystok, Centrum.
Zapraszam.
P.S. Posiadam wiele innych podzespołów PC, służę pomocą w budowie, konserwacji, naprawie tego sprzętu.
Złącza
- DVI
- HDMI
- USB 3.0
Dodatkowe
- zintegrowana karta graficzna
- zintegrowana karta dźwiękowa
- zintegrowana karta sieciowa
Skontaktuj się
jcamps77
Liczba odsłon: 195
Zgłoś nadużycie
99 zł
