Witam

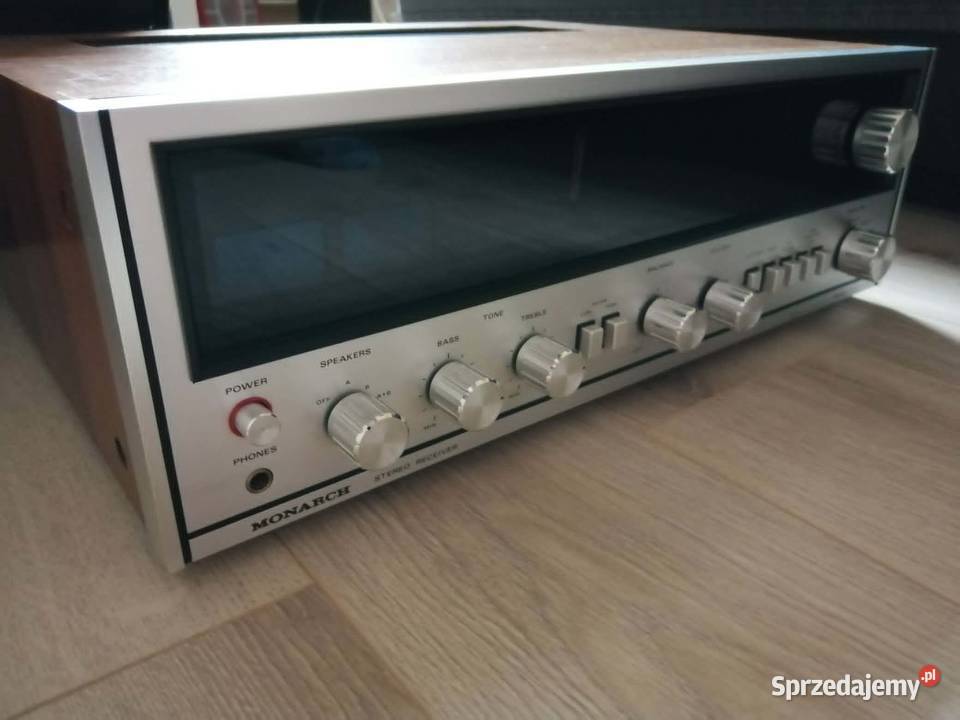

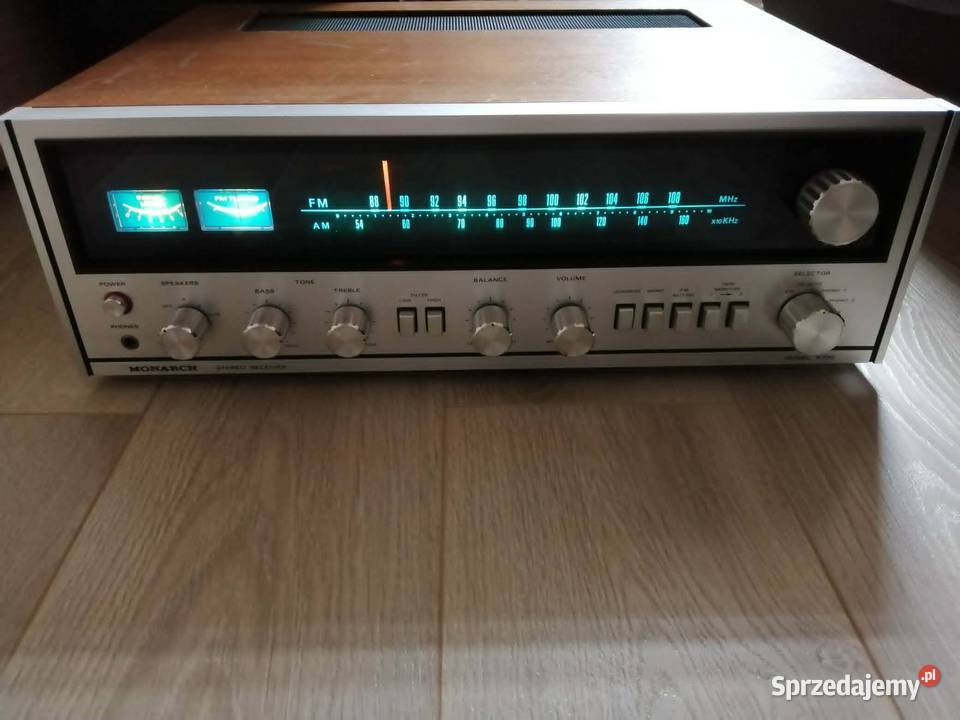

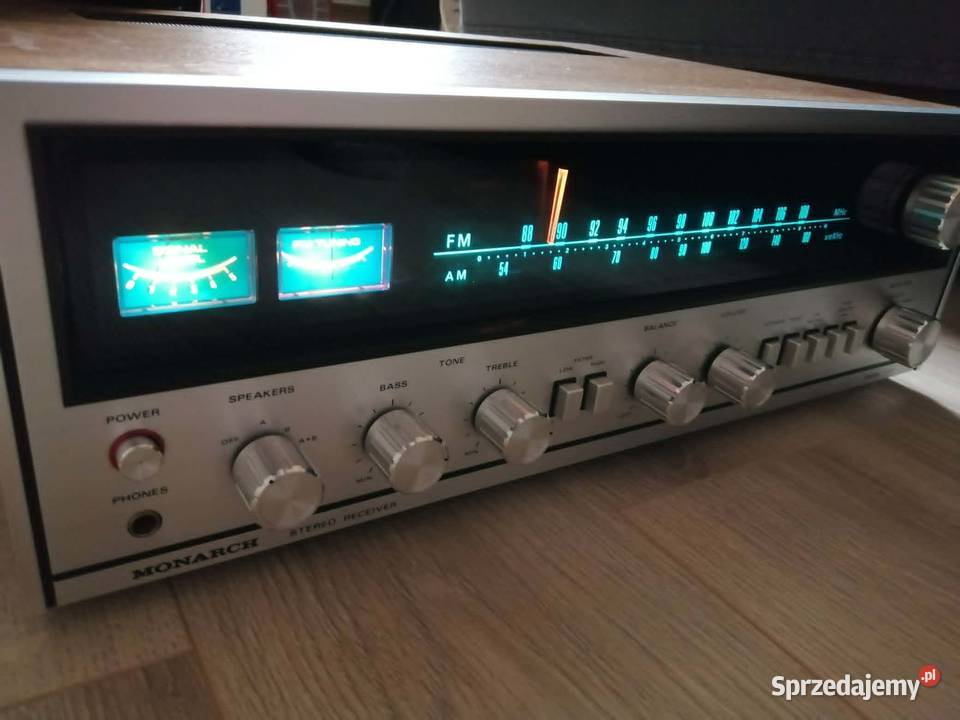

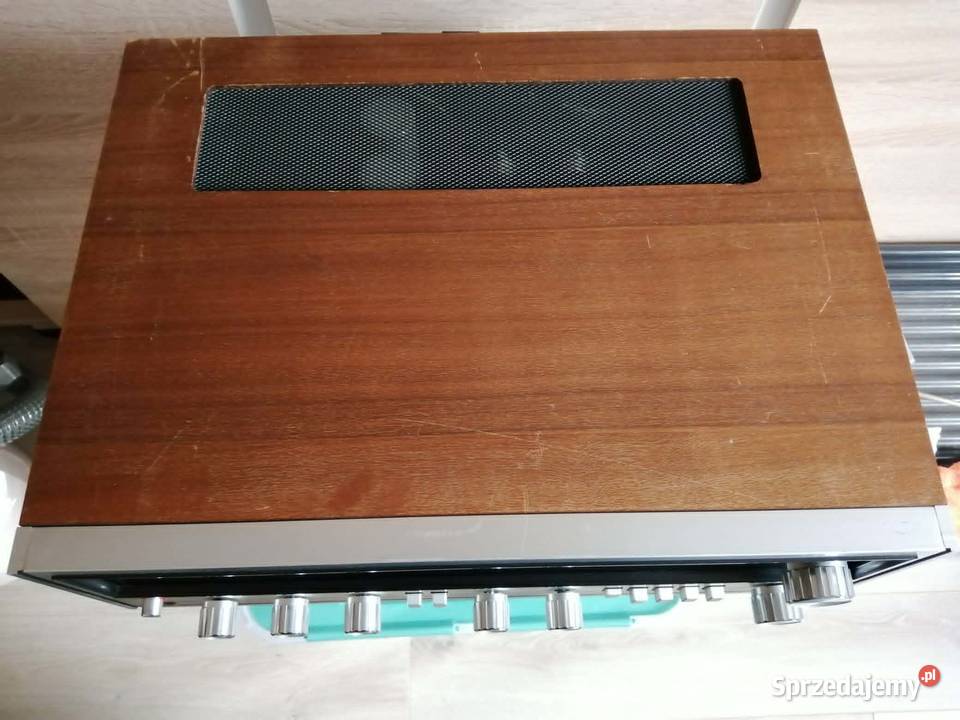

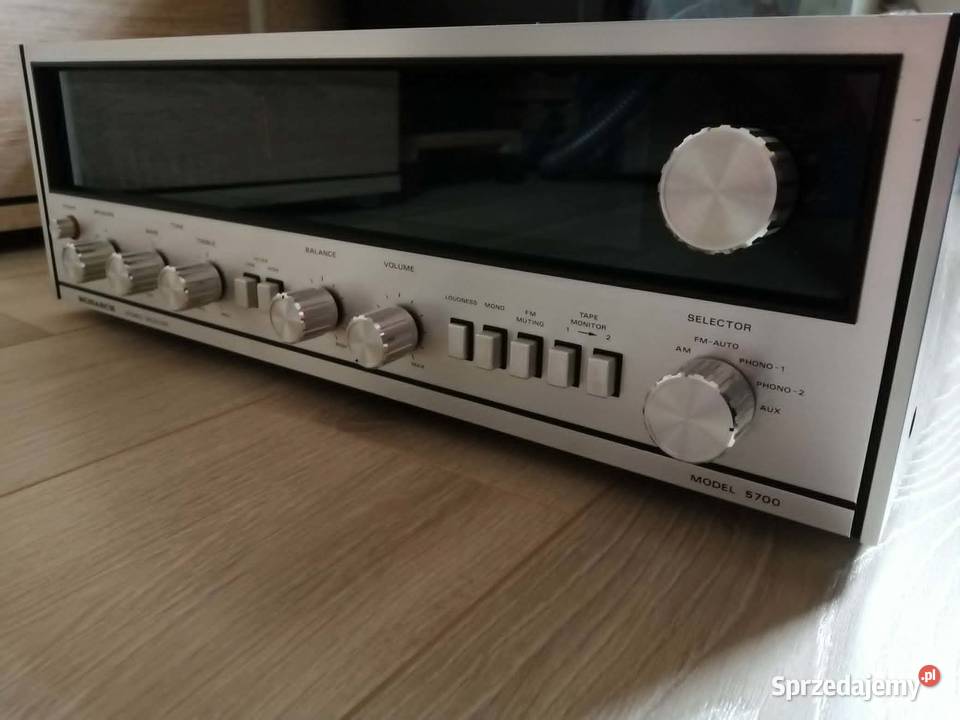

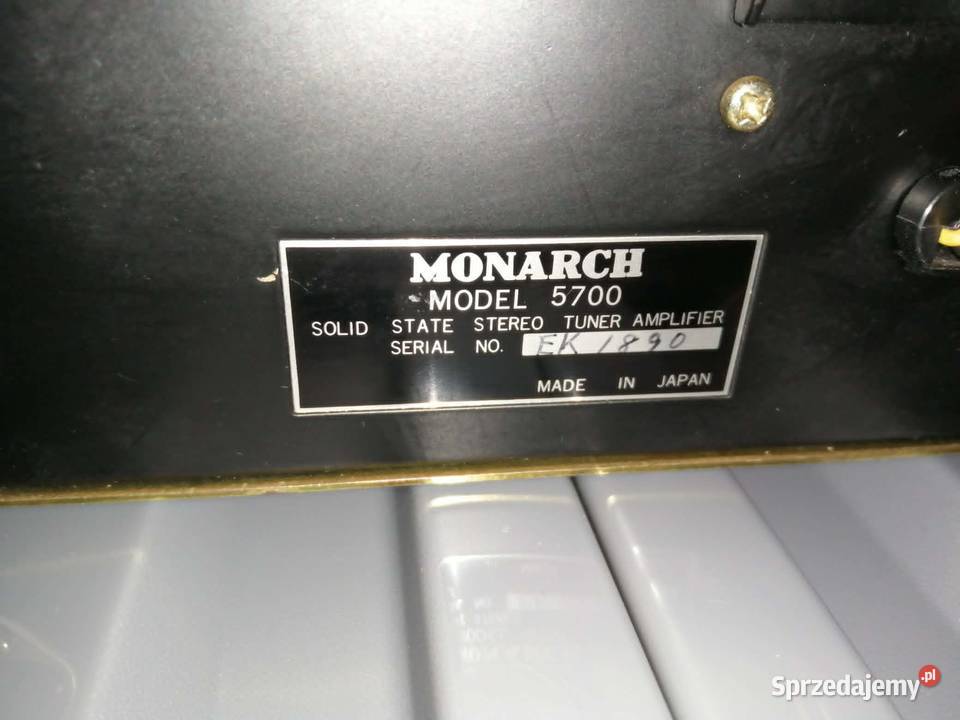

Sprzedam Amplituner MONARCH 5700.
Wymiary: 445 x 150 x 390 mm.
Waga: 10.5 kg
Dane techniczne:

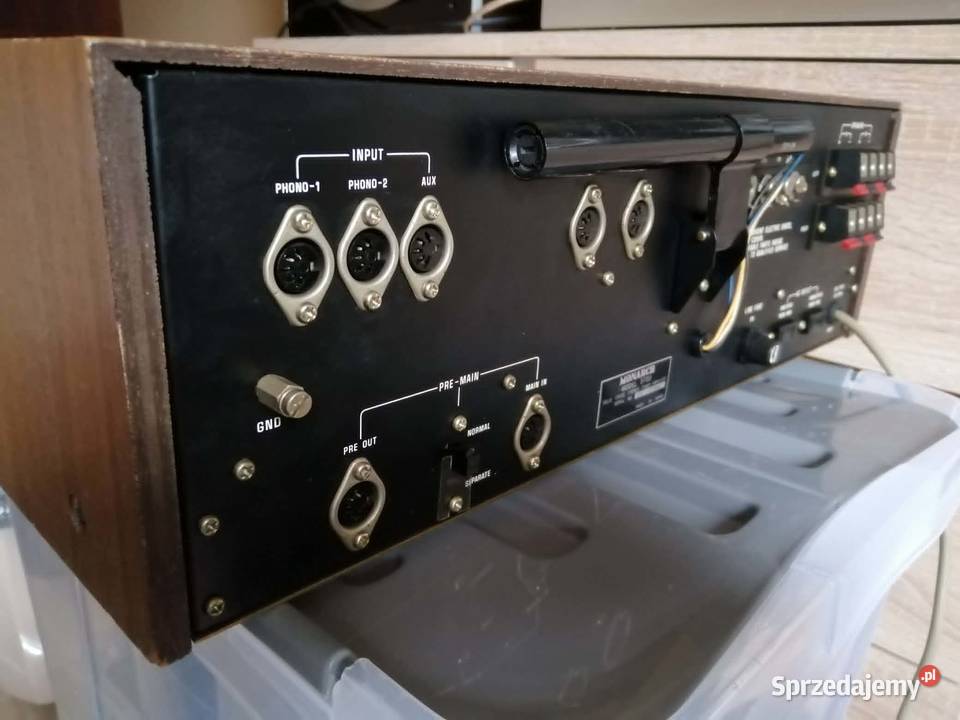

Connections
Number of inputs:
Phono MM 1, 2: 2.5 mV / 50 kOhm
AUX: 150 mV / 45 kOhm
Tape Play 1, 2: 150 mV / 45 kOhm
Main In:
Antenna FM (75/300 Ohm), MW (300 Ohm).

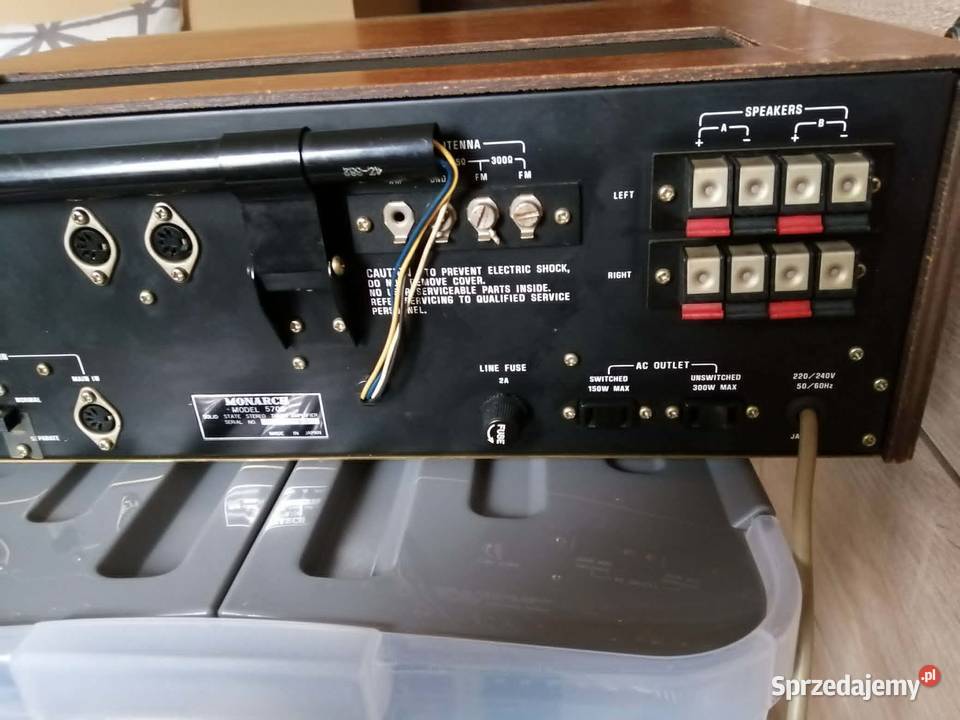

Number of outputs:
Tape Rec 1, 2: 150 mV / 100 Ohm.
Pre Out:
Headphones (6.3 mm jack)
2 pairs of speakers
Technical Data
Amplifier
Continuous power
8 Ohm: 2x 30 W 4 Ohm: 2x 45 W
dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.8% (at nominal power)
Attenuation factor: 30 (8 Ohm)
Frequency response: 10 - 40'000 Hz
Signal-to-noise ratio:
Phono MM: 70 dB
AUX, Tape: 80 dB
Stereo channel separation:
Tone control:
Bass: ± 10 dB at 100 Hz
Treble: ± 10 dB at 10 kHz
Loudness: + 10 dB at 100 Hz, + 5 dB at 10 kHz
High Filter: yes
Low Filter (Subsonic): yes
Tuner
Reception: FM, MW
Frequencies:
FM: 87.5 - 108 MHz
MW: 525 - 1,605 kHz
Frequency response:
Input sensitivity:
FM: 2.5 µV (IHF)
MW: 25 µV Distortion factor:
FM: 0.4% (mono), 0.6% (stereo).
Signal-to-noise ratio:
FM: 62 dB (stereo)
MW: 45 dB
Channel separation:
FM: 33 dB (at 1 kHz).
Selectivity:
FM: 45 dB
MW: 25 dB
Equal wave selection:
FM: 3 dB
Spurious wave selection:
FM: 75 dB
Mirror frequency attenuation:
FM: 50 dB
MW: 45 dB
IF attenuation:
FM: 80 dB
MW: 33 dB
AM suppression: 45 dB
Special Features
Tape Dubbing
FM muting
Skontaktuj się
xxx
Liczba odsłon: 16
Zgłoś nadużycie
950 zł
